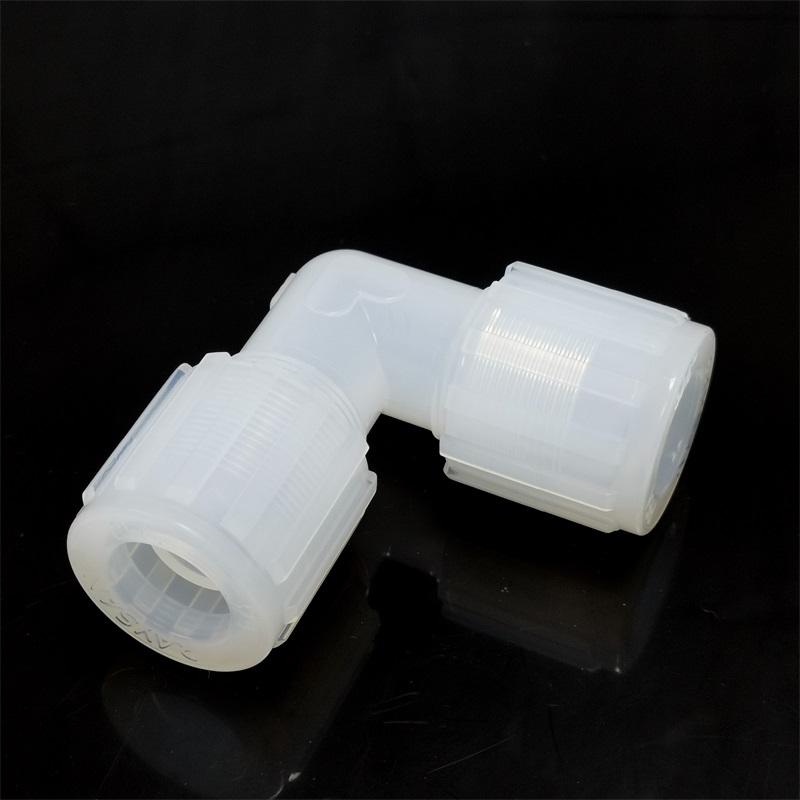

PFA-unionsbue - CJUE Egenskaber: anvendes specielt i halvlederindustrien med høj renhed og er også...
Funktioner: Det er specielt anvendes i høj renhed halvlederindustrien, og også egnet til ultra ren...

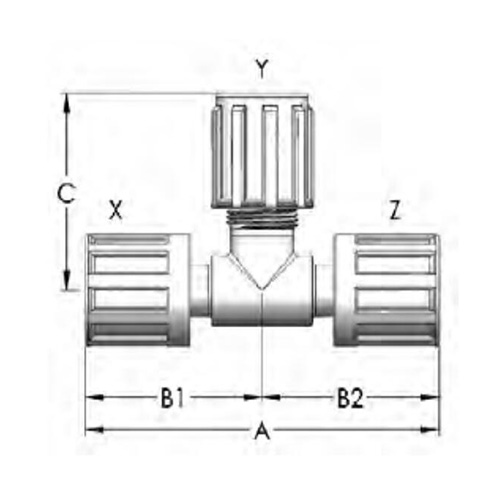

| Del nr. | X (pladsbesparende) | Y | Z (pladsbesparende) | Orientering | A | B1 | B2 | C |
| (tomme) | (tomme) | (tomme) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| RTS2A04S0404S1 | 1/4" | 1/4" | 1/4" | 3.81mm | 83.31mm | 41.66mm | 41.66mm | 42.16mm |
| RTS2A06S0406S1 | 3/8" | 1/4" | 3/8" | 3.81mm | 87.88mm | 43.94mm | 43.94mm | 42.16mm |
| RTS2A06S0606S1 | 3/8" | 3/8" | 3/8" | 6.35mm | 87.88mm | 43.94mm | 43.94mm | 44.70mm |
| RTS2A06S0806S1 | 3/8" | 1/2" | 3/8" | 6.35mm | 87.88mm | 43.94mm | 43.94mm | 47.50mm |
| RTS2A08S0408S1 | 1/2" | 1/4" | 1/2" | 3.81mm | 93.47mm | 46.74mm | 46.74mm | 42.16mm |
| RTS2A08S0808S1 | 1/2" | 1/2" | 1/2" | 9, 65mm | 93.47mm | 46.74mm | 46.74mm | 47.50mm |
| RTS2A08S1208S1 | 1/2" | 3/4" | 1/2" | 9, 65mm | 93.47mm | 46.74mm | 46.74mm | 56.39mm |
| RTS2A12S0412S1 | 3/4" | 1/4" | 3/4" | 3.81mm | 108.20mm | 54.10mm | 54.10mm | 42.16mm |
| RTS2A12S0612S1 | 3/4" | 3/8" | 3/4" | 6.35mm | 108.20mm | 54.10mm | 54.10mm | 44.70mm |
| RTS2A12S0812S1 | 3/4" | 1/2" | 3/4" | 9, 65mm | 108.20mm | 54.10mm | 54.10mm | 47.50mm |
| RTS2A12S1212S1 | 3/4" | 3/4" | 3/4" | 16.00mm | 108.20mm | 54.10mm | 54.10mm | 68.58mm |
| RTS2A16S0616S1 | 1" | 3/8" | 1" | 6.35mm | 139.19mm | 69.60mm | 69.60mm | 54.10mm |
| RTS2A16S0816S1 | 1" | 1/2" | 1" | 9, 65mm | 139.19mm | 69.60mm | 69.60mm | 57.40mm |
| RTS2A16S1216S1 | 1" | 3/4" | 1" | 16.00mm | 139.19mm | 69.60mm | 69.60mm | 56.13mm |
| RTS2A16S1616S1 | 1" | 1" | 1" | 22, 35 mm | 139.19mm | 69.60mm | 69.60mm | 68.58mm |
